HG3-800-800

THAT MAKES THE DIFFERENCE

HG3-1200-1000

HG3-800-800

Number of axes 3
Travel distances
X (mm) 800
Y (mm) 800
Z (mm) 500
Main spindle speed (RPM) 12000
Position tolerance TP (mm) 0,006

  • - Characteristics -

    • Geometric stability and vibration-damping structure due to gantry design
    • High machining performance due to robust design
    • High dynamics achievied through powerful drives
    • Optimal chip removal thanks to steep walls in the machining area and generously dimensioned chip conveyor
    • Machine can be easily loaded with a crane due to the far-retracting gantry
    • No guiding, measuring systems, or ball screws in the machining area
    • Compact milling spindle unit (no motor spindle)
    • Easy accessibility for service tasks
    • Good accessibility to the machine table due to the overhanging guideways
    • Quick and easy alignment of the machine due to monoblock design

  • - Assistance for Self Help -

    Frequently, you can perform maintenance, repairs, or service tasks on your own. Detailed repair and service manuals will assist you in executing these tasks professionally. This concept was already taken into account during the design of the HG3 machine type, resulting in a logical and straightforward structure. If desired, our qualified service personnel are ready to provide support.


    Moreover, when it comes to procuring spare parts, operating supplies, or any other materials, we guarantee the most cost-effective and prompt solutions. You can choose to rely on our extensive inventory or source directly from the manufacturer as per your preference.

  • - Optional Equipment -

    •  Tool magazine for holding 30 tool (further tool places on request)
    • High-pressure coolant system standard: 20 bar, optional: 40 bar
    • Collision monitoring / Brankamp 2-channel
    • Camera for indoor surveillance
    • Triple machine vices with various clamping elements
    • 3D touch probe / Heidenhain
    • Handwheel
    • Suction system

THAT MAKES THE DIFFERENCE

HG3-1200-1000

  • Geometric stability and vibration-damping structure thanks to the portal design
  • High cutting performance due to robust construction
  • High dynamics thanks to powerful drives
  • Optimum chip removal through steep walls in the machining area and generous
    dimensioned chip conveyor
  • The machine can be optimally loaded with a crane thanks to the retracting portal
  • No guide, measuring systems or ball screws in the machining area
  • Compact milling spindle unit (no motor spindle)
  • Easy accessibility for service work
  • Easy access to the machine table thanks to the overhanging guideway
  • Quick and easy alignment of the machine thanks to the monoblock design
  • Quadruple guided Z-axis

HG3-800-800

  • Geometric stability and vibration-damping structure due to gantry design
  • High machining performance due to robust design
  • High dynamics achievied through powerful drives
  • Optimal chip removal thanks to steep walls in the machining area and generously dimensioned chip conveyor
  • Machine can be easily loaded with a crane due to the far-retracting gantry
  • No guiding, measuring systems, or ball screws in the machining area
  • Compact milling spindle unit (no motor spindle)
  • Easy accessibility for service tasks
  • Good accessibility to the machine table due to the overhanging guideways
  • Quick and easy alignment of the machine due to monoblock design


ASSISTANCE FOR SELF-HELP instead of expensive service technicians.

Frequently service tasks, maintenance, or repairs can be carried out mostly independently. Detailed service and repair instructions help you execute these tasks correctly. This concept was already taken into account during the desgin of the HG3 machine type, resulting in a logical and uncomplicated design. If desired, our qualified service staff can provide support.


When it comes to procuring spare parts, consumables, or other materials, we guarantee the most cost-effective and fastest solution. You have the option to utilize our extensive inventory or procure directly from the manufacturer.

Workspace

Travel XYZ axis 1200 / 1000 / 800 mm
Distance spindle fixed table min. / max. 1000 / 200 mm

staring table

clamping surface table 1300 x 1000 mm
9 T-slots according to DIN 650 in X-direction 18 H7
2 alignment grooves in the X direction 18 H7
table load max. 4000 kg

Feed drive XYZ axis

AC servo drives maintenance-free, digital
Rapid traverse speed XYZ axis 20 m/min
Feed force XYZ axis at 40% ED 20,5 kN

main spindle drive

milling spindle
tool holder SK50 DIN 69 817 Big
Drive power at S1 50 kW
Speed range, stepless max. 1-8000 U/min
Torque at 25% ED 690 Nm

tool magazine

Magazine slots, 1 plate 32
Tool diameter when fully loaded max. 100
Tool diameter with free adjacent spaces max. 160
tool length max. 300
tool weight max. 10 kg

Measuring system XYZ, direct

Position tolerance TP according to VDI/DGQ 3441 ≤ 0,007 mm
machine weight approx. 25.000 kg
CNC Control TNC 640 Heidenhain
DATA SHEET (PDF)

Workspace

Travel distance XYZ axis 800 / 800 / 500 mm
Distance spindle fixed table min. / max. 150 / 650 mm

Fixed table

Clamping surface table 800 x 800 mm
8 T-slots according to DIN 650 in the X direction 18 H7
Table capacity max. 2000 kg
Feed drive XYZ axis 25 m/min

Main spindle drive

Milling spindle direct-drive with CTS
Tool holder SK40 DIN 69 871
Drive power at S1 100% 17,5 kW
Speed range, stepless max. 1-12000 rpm
Torque at S6 40% 192 Nm

Tool magazine

Magazine slots, 1 chain 30 pcs. (more on request)
Tool diameter when fully loaded max. 80 mm
Tool diameter with free adjacent spaces max. 125 mm
Tool length max. 300 mm
Tool weight max. 8 kg
Total load max. 150 kg

Measuring system XYZ, direct

Position tolerance TP according to VDI/DGQ 3441 ≤ 0,006 mm
Machine weight approx. 11.000 kg
CNC Control TNC 640 Heidenhain / Siemens

Coolant device

Tank capacity 600 Liter
Coolant pressure CTS 20 Bar
External cooling 4 nozzles
Milling air available

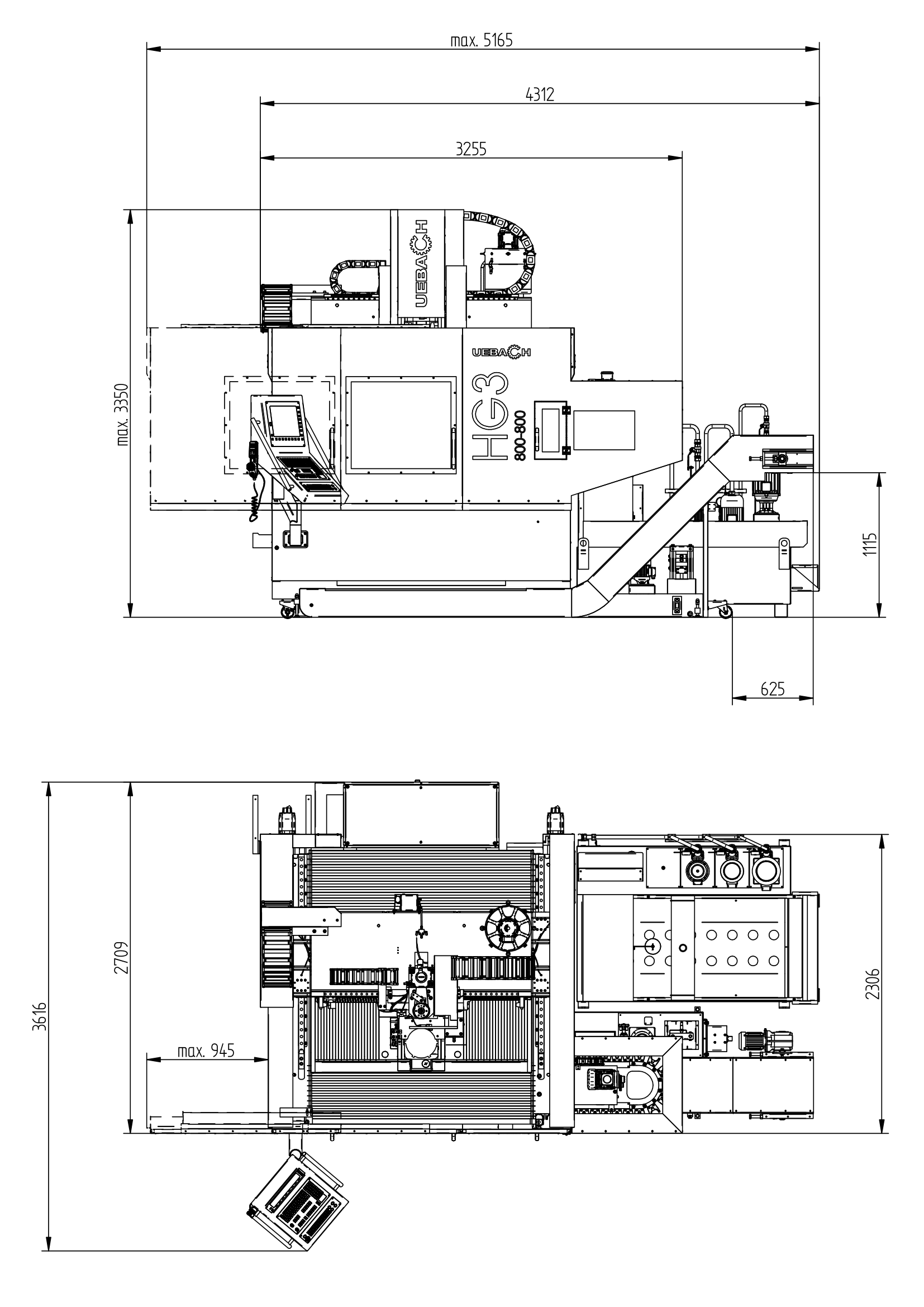

Dimensions

DATA SHEET (PDF) BROCHURE (PDF)

OPTIONAL EQUIPMENT.

  • Milling spindle with spindle speed max. 5,000 rpm, 8,000 rpm
  • Tool magazine for holding either 10, 20, 32 or 36 tools
    ▸ further tool places on request
  • High-pressure coolant system standard: 20 bar, optional: 40 bar
  • Collision monitoring / Brankamp 2-channel
  • Camera for indoor surveillance
  • Triple machine vices with various clamping elements
  • 3D touch probe / Heidenhain
  • handwheel
  • suction system

OPTIONAL EQUIPMENT.

  • Tool magazine for holding 30 tools
    ▸ further tool places on request
  • High-pressure coolant system standard: 20 bar, optional: 40 bar
  • Collision monitoring / Brankamp 2-channel
  • Camera for indoor surveillance
  • Triple machine vices with various clamping elements
  • 3D touch probe / Heidenhain
  • Handwheel
  • Suction system
